GENERAL INFORMATION

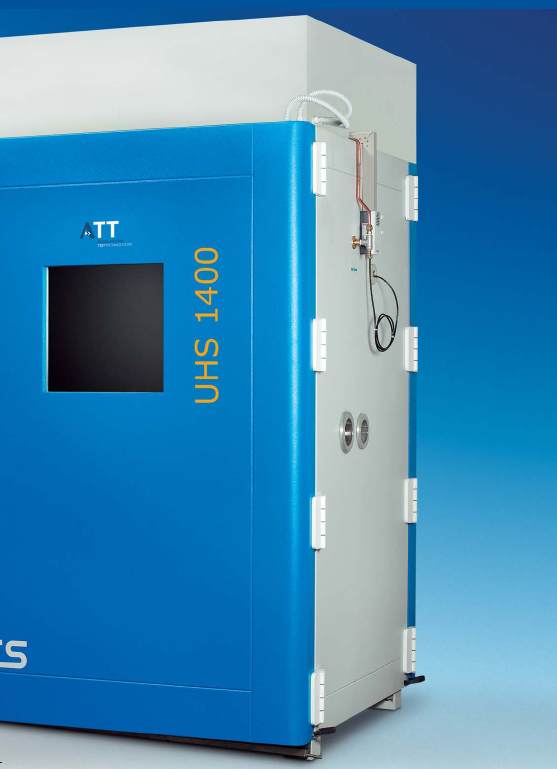

The UHS temperature range is from -100° to +200°C. The systems use liquid nitrogen for cooling and nichrome heaters for heating.The temperature change rate is up to 100°C/minute.
Temperature Range: —100° to +200° C
Temperature Change Rate: up to 100°C/min on air over the range -60°C/+150°C and viceversa
Vibration table size: 36" x 36"
Vibracija atliekama X,Y,Z ašimis
Acceleration: Up to 100 gRMS
Frequency Range: 5 to 10,000 Hz
Pneumatic Vibrators: 9
Internal Dimensions: 1150x 1150x1030 mm
External Dimensions: 2200 x 1580 x 2670 mm
Heafing: 120 kW by nichrome heaters
Cooling: Liquid nitrogen expansion
Humidity (optional): 20% to 90% from 30° to 85° C
Noise level: 78+80 db (A) at one meter with doors closed
Reikalingas oro slėgis vibracijos įrenginiui; 8 bar
Oro srautas; 1,9 kubinio metro per minutę
Skysto azoto slėgis; 6-8 bar
Maitinimas; 400V +6/-10% 50Hz 3+N+G
Amperai; 205 A
