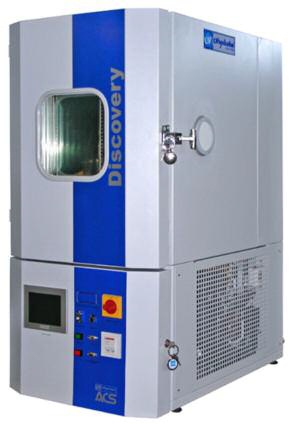

This line of chambers is thermostatic version (temperature only); 59,5 liters; [-40°C; +180°C]
GENERAL INFORMATION
– Useful capacity: 59,5 l
– Internal dimensions (WxDxH): 350x340X500 mm
– External dimensions (WxDxH): 630x970x1180 mm
– Electrical power: 2,3 kW (average 1,4 kW)
– Voltage: 230 V ±10%/50Hz/1ph + G
– Noise: 60 dBA (measured at 1 m from the front wall in a non reverberating room)
– Weight: 210 kg
PERFORMANCES
(measured at room temperature of 22°C and empty working space)
– Temperature range: [-40°C; +130°C]
according to IEC 60068-3-5, IEC 60068-3-6
– Temperature Fluctuation: ±0,1°C...±0,3°C
– Temperature Rate of Change (measured at the control probe):
Heating = 3°C/min. from -40°C to +180°C
Cooling = 3°C/min. from +180°C to -40°C
– Thermal Load at -25°C: 100 W
CONTROLS
controlled by PLC and "KeyKratos Plus" touchscreen on the door.
Memory capacity to 1000 cycles with 350 segments.
Unlimited real time recording of temperature versus time (log on Compact flash).
Recordings in CSV format (Comma Separated Value) for easy export to Excel® from Memory Card to Pendrive via USB interface placed on the front panel (program files are easily convertible into graphic format).
A trend chart for recorded variables available with a scale from -100/+200.
Messages on scheduled maintenance activities.
Synoptic graphs for the chamber, humidity, low stage refrigeration and high stage refrigeration.
THE BASIC CONFIGURATION INCLUDES:
* Mechanical door closers
* 300x300 mm multipane inspection window
* n° 1 lateral porthole (diam. 80 mm) on the right side
* n° 1 shelf
* lnternal lighting
* Air condenser
* Safety max thermostat
* RS232 interface
* Ethernet port
* T analogic retransmission
* no. 1 auxiliary contact (specimens)
* Connection to UPS
The software source code and the relative documentation are not included.
DY60T ACCESSORIES
| Code | Name |
| 18AX0004 | CE MARK (INCLUDING EMC) (for 60 l) |
| 18AX0025 | SET OF NO. 4 ANALOGIC INPUTS 0÷10V FOR USER’S DATA ACQUISITION (no. 1 set max.) |
| 18AX0026 | SET OF NO. 4 PT100 INPUTS (no. 1 set max.) |
| 18AX0028 | SET OF NO. 2 AUXILIARY CONTACTS (no. 1 set max.) (for 60 l ) |
| 18AX0040 | DIGITAL UNDERTEMPERATURE/OVERTEMPERATURE SWITCH WITH INDIPENDENT PROBE (16 – 60 l) |
| 18AX0107 | 80 MM PORTHOLE <=60 l |
| 18AX0123 | OVERPRICE FOR SPECIAL VOLTAGES ON REQUEST |
| 18AX0140 | WINKRATOS S/W (WINDOWS) FOR ONE CHAMBER REMOTE CONTROL BY PC (via Ethernet) |
| 18AX0141 | P.C. COMPLETE WITH WINKRATOS S/W (WINDOWS) FOR ONE CHAMBER REMOTE CONTROL (via Ethernet) |
| 18AX0142 | WINKRATOS S/W (WINDOWS) FOR MULTICHAMBER CHAMBER REMOTE CONTROL BY PC (via Ethernet, max 16 chambers) |
| 18AX0146 | P.C. COMPLETE WITH WINKRATOS S/W (Windows) FOR MULTICHAMBER REMOTE CONTROL (via Ethernet, max 16 chambers) |
| 18AX0151 | WINKRATOS S/W (WINDOWS) FOR MULTICHAMBER CHAMBER REMOTE CONTROL BY PC (via RS232 or RS485 or RS422, max 16 chambers) ON REQUEST |
| 19AX0180 | CALIBRATION CERTIFICATE FOR TEMPERATURE (USING INSTRUMENTS CALIBRATED WITH ACCREDITED CALIBRATION LABORATORY METROLOGICAL CHAIN) |
