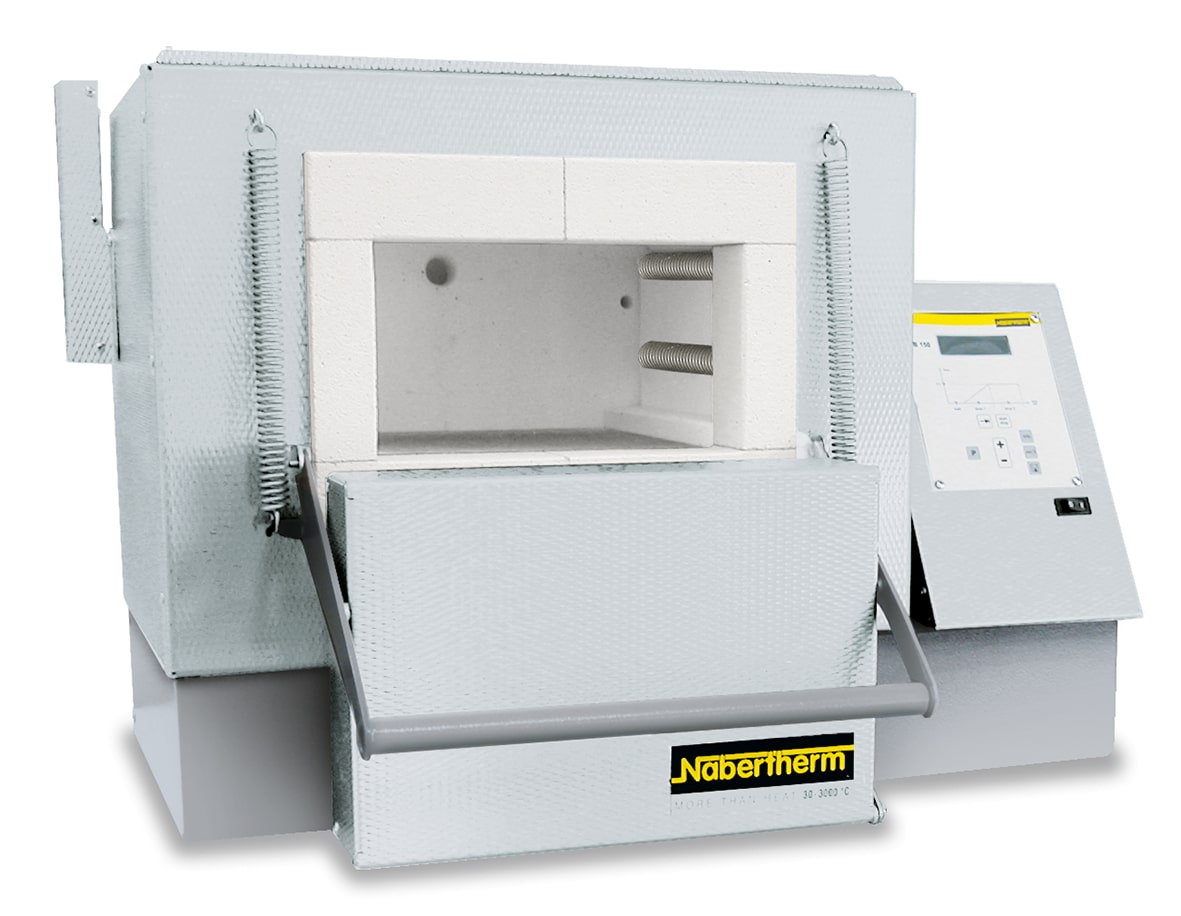

These universal chamber furnaces with radiation heating have been specifically designed to withstand heavy-duty use in the heat treatment shop. They are particularly useful for processes such as tool making or for hardening jobs, e.g. annealing, hardening and forging. With help of various accessories, these furnaces can be customized to your application requirements.
TECHNICAL CHARACTERISTICS
- Chamber volume: 30 l
- Max. temperature : 1280°C
- Inner chamber dimensions (WxDxH): 350x350x250 mm
- External dimensions (WxDxH): 840x1010x1320 mm
- Heating power: 15 kW
- Voltage: 400 V /50Hz/3ph
- Weight: 210 Kg
CONSTRUCTION OF THE PRODUCT
- Compact, robust design
- Three-sides heating: from both side walls and bottom
- Heating elements protected in grooves
- Bottom heating protected by heat conducting SiC tiles
- Parallel guided downward swinging door (user protected from heat radiation)
- Stainless steel upper door jamb protects furnace structure when furnace is opened hot
- Exhaust opening in the side of the furnace, or on rear wall of furnace in the N 31/H models and higher
- Temperature uniformity up to +/- 10 °C according to DIN 17052-1
- Low energy consumption due to multi-layer insulation
- Gas spring dampers provide for easy door opening and closing
